NC65cds
Enhancing the reliability to
your cash-in solutions
The iconic validator which is extracted from MA's best selling product, now available to the market to explore even more opportunities to approach more applications around the world.
The NC65CDS performs exceptional banknote authentication, in addition, it's capable of recognizing diverse of currencies and denominations. Which empowers smart safes even smarter and reliable all in a decent footprint.
detection
Banknote Authentication
Serial Number Reading
available protocols
SDK
REST API
Eat like
BEAM CDS feat. NC65CDS Banknote Validator
Performs exceptional banknote authentication, in addition, it's capable of recognising diverse currencies and denominations, which empowers smart safes even smarter and more reliable, all in a decent footprint.

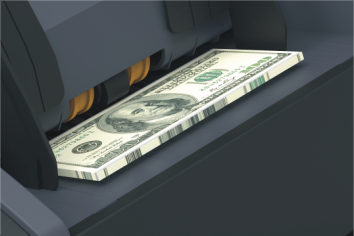

escrow
designed to ensure the same notes are
returned upon transaction cancellation, controlled by App.
ESSENTIAL SENSORS ARRAY
Built with in-house engineered sensors tech. to validate notes alongside of fitness sorting capability.

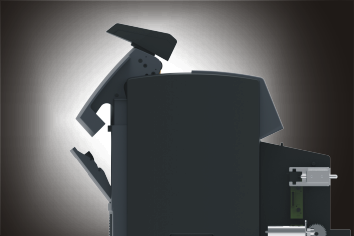

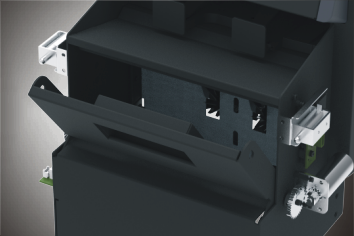

front opening service
The Bill Path & Conveyor are designed with front-accessible so it's convenient when it comes to servicing.
PERFORMANCE
SPECIFICATION
|
|
|
|
|---|---|---|
|
|
Detection | Banknote Authentication
Banknote SN Reading |
|
|
Currencies | 109 available, max, 32/unit |
|
|
Capacity | Hopper : 100 Banknotes
Escrow : 100 Banknotes Reject Pocket : 50 Banknotes |
|
|
Deposit Speed | 600 Note/Min |
| Countable Note Size | 60 x 85 x 0.08mm ~ 100 x 190 x 0.12mm | |
| Interface | LAN | |
| Power Supply | DC12V, DC24V | |
| Consumption | 25W | |
| Dimensions | 357 X 272 X 382 mm | |
| Net Weight | 14kg |
