NC71cds
Powerful Companion to your cash-in solutions
From the strong and solid foundation of MA technology, NC71CDS is capable of validate different currencies and denominations of banknotes fast, efficient and precise. Setting up the benchmark to an even higher level, proven by thousands of MA Cash Deposit Systems deployed worldwide that secures cash and significantly optimized retailers' daily cash-in processing time.
NC71CDS is ideal for heavy-duty sites that handles over 10000 notes per week. Various of adaptations available that will keep updating with new emissions of notes, and the best part of it : all by remote. Everything is designed according to perfection.
detection
Banknote Authentication
Serial Number Reading
available protocols
XFS
SDK
REST API
Eat like
KUAN CDS feat. NC71CDS Banknote Validator
From the strong and solid foundation of MA technology, NC71CDS is capable of validate different currencies and denominations of banknotes fast, efficient and precise. Setting up the benchmark to an even higher level, proven by thousands of MA Cash Deposit Systems deployed worldwide that secures cash and significantly optimized retailers' daily cash-in processing time.

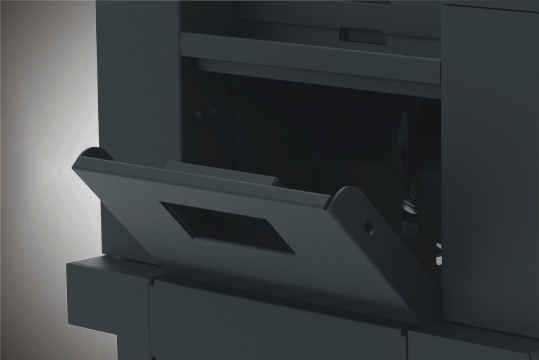

deposit gate
Anti-phising mechanism to enhance the security from accessing to the safe compartment down below.
escrow
designed to ensure the same notes are
returned upon transaction cancellation, controlled by App.

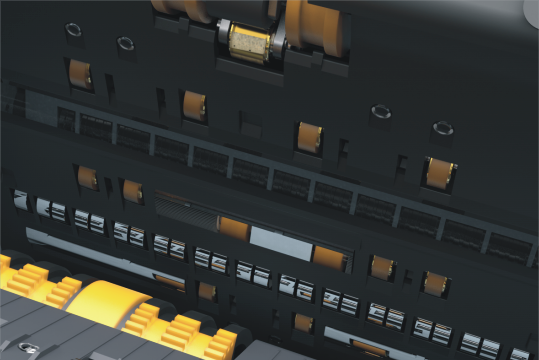

ESSENTIAL SENSORS ARRAY
Built with in-house engineered sensors tech. to validate notes alongside of fitness sorting capability.

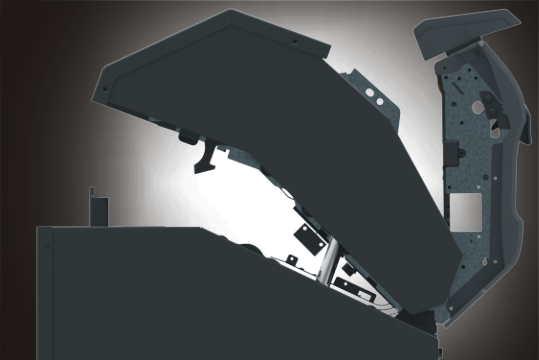

front opening service
The Bill Path & Conveyor are designed with front-accessible so it's convenient when it comes to servicing.
PERFORMANCE
SPECIFICATION
|
|
|
|
|---|---|---|
|
|
Detection | Banknote Authentication
Banknote SN Reading |
|
|
Currencies | 109 available, max, 32/unit |
|
|
Capacity | Hopper : 500 Banknotes
Escrow : 400 Banknotes Reject Pocket : 1 00 Banknotes |
|
|
Deposit Speed | 1000 Note/Min |
| Countable Note Size | 60 x 85 x 0.08mm ~ 100 x 190 x 0.12mm | |
| Interface | LAN | |
| Power Supply | DC12V, DC24V | |
| Consumption | 25W | |
| Dimensions | 430 X 387 X 540 mm | |
| Net Weight | 39kg |
