SPARK Banknote Validator

SPARK OEM

Discover the perfect harmony
of performance and quality

SPARK OEM Module is design to fit into the key position of compact size smart safes, to play a critical role when it cash automation ecosystem, significantly accelerates the time spent on counting banknotes and at the same time validating. The risk of cash shrinkage can be massively
reduced and optimizes the cash handling operation to a whole new level.

All these wouldn't be possible without MA's very own sensor array, which easy gets the job done with a decent speed.

detection

Banknote Authentication
Serial Number Reading

available protocols

SDK

REST API

Eat like
there is tomorrow

We deliver balanced meals for every day

Select a plan

+886226557997

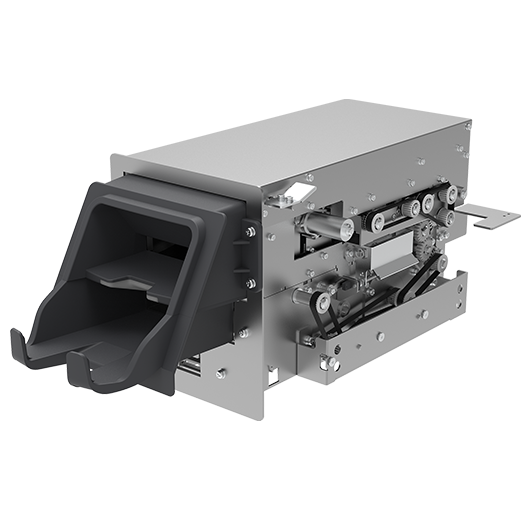

SPARK OEM Banknote Validator

SPARK OEM Module is extremely easy to operate when it comes to periodic maintenance or jam removal. The precise and instant feeding is certainly another value add-up that bring great user experience, simply feed the notes and it starts accepting at an almost seamless level.

escrow

designed to ensure the same notes are
returned upon transaction cancellation, controlled by App.

ESSENTIAL SENSORS ARRAY

Built with in-house engineered sensors tech. to validate notes alongside of fitness sorting capacility.

front opening service

The Bill Path & Conveyor are designed with front-accessible so it's convenient when it comes to servicing.

PERFORMANCE

Deposit speed

180

Notes / Min.

currencies

109

Available

max.

Installable Per Unit

HOPPER CAPACITY

Notes

reject CAPACITY

100

Notes

OPtional feature

Fitness

Sorting

validates & sorts notes by detecting holes, tears, folded or taped, missing corners, stain and soils.

Cheque & TITO Scan

supports certain designs of cheque from various banks around the world, ehances the flexibility.

*Customed SW development may be needed

S/N Reading

with the capabilit also to read and, detect then follow by know.
Enlarge the customer base and application

SPECIFICATION


	Detection	Banknote Authentication Banknote SN Reading
	Currencies	109 available, max, 32/unit
	Capacity	Hopper : 50 Banknotes Reject Pocket : 30 Banknotes
	Deposit Speed	180 Note/Min
	Countable Note Size	60 x 85 x 0.08mm ~ 100 x 190 x 0.12mm
	Interface	LAN
	Power Supply	DC24V
	Consumption	25W
	Dimensions	446 X 173 X 182 mm
	Net Weight	6.7kg
